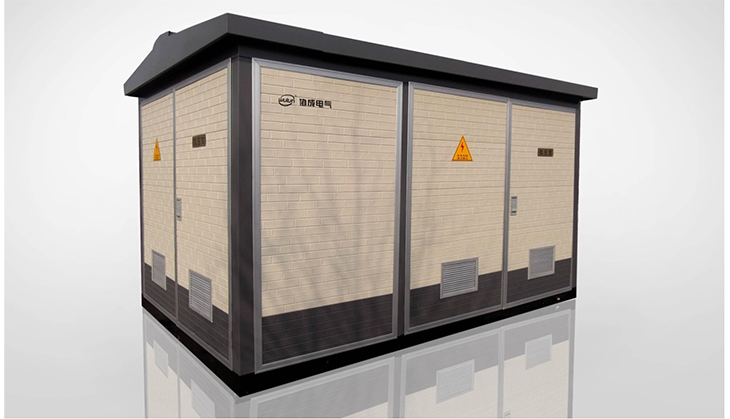

The main functions and features of Compact Substation：

The product is made by connecting the high-voltage distribution device, the transformer and low-voltage distribution device. It is divided into three functional chambers, namely, high-voltage chamber, transformer chamber and low-voltage chamber. The high-voltage chamber has complete functions. HXGN□-10 ring network cabin forms the primary power supply system and it can be configured for ring network power supply, terminal power supply, dual power supply and various other power supply modes. Moreover, high voltage measuring components can be installed to meet high voltage measuring demand. S9, S11 as well as other low loss oil immersed transformers and dry-type transformers can be selected. The transformer chamber has automatic forced air cooling system and illuminating system. The low-voltage chamber can adopt panel or cabinet structure to form the required power supply scheme based on user demand. It has electric distribution, light distribution, reactive power compensation, electric energy measuring and other functions, so that different user requirements can be satisfied, power supply conveniently managed and power supply quality improved.

The high-voltage chamber has a compact and reasonable structure and overall anti-misoperation interlocking functions. Each chamber is equipped with automatic and forced lighting devices. In addition, all the components selected for high- and low-voltage chambers are reliable and easy to operate, contributing to safe and reliable operation as well as easy maintenance of the products.

There are two ventilation modes, namely, natural and forced ventilation, to guarantee good ventilation and cooling. Both the transformer chamber and the low-voltage chamber are equipped with ventilation duct and the exhaust fan has temperature device, so that it can automatically start and stop according to the set temperature, thereby ensuring full-load operation of the transformer.

The box structure can prevent rain and dirt from entering and is made with hot galvanized color steel plates or rust-proof aluminum alloy plates and treated with preservatives. They are suitable for long-term outdoor applications. Guaranteed anticorrosion, waterproof and dustproof properties can extend service life of the products and contribute to their excellent appearance.

The products are serialized, modular, powerful, well equipped, small, light and well-shaped. They can completely meet IEC1330 standard requirements and they are suitable for power supply for urban public distribution, street lamp power supply, industrial and mining enterprises, high-rise buildings, residential quarters, oil fields, wharfs and construction sites, etc.
