The main funcitons and features of Rectifier Transformer:

These products are widely used in electrochemical electrolysis, drive, traction, electrostatic precipitation, DC transmission and other systems requiring rectification power supply. Rectifier transformers are used for rectifying the power. The majority of the industrial DC power is obtained with rectifying devices made up of rectifier transformers and rectifiers and widely used in such areas requiring rectification power as electrochemical electrolysis, traction, drive, DC transmission, alternating frequency and other general industries. Products of diverse structures with secondary winding phase differences of 30°, 15° and 7.5° for 6-, 12-, 24- and 48-phase rectification can be designed and manufactured according to requirements of the users.

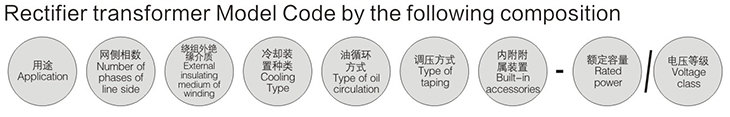

Model codes: ZH – electrochemical electrolysis; ZQ – traction;

ZS – drive;

ZZ – DC transmission;

ZP – alternating frequency; ZB – general industries
Grid side phase number: D – single-phase; S – three-phase
External insulating medium of winding: transformer oil air (dry-type) G
Type of cooling unit: natural cooling/air cooling F; water cooling S
Oil circulation mode: natural circulation; forced oil circulation P
Voltage regulating mode: Non-excitation regulation or internal tap changing auto-transformer or series connected on-load transformer T, or self-saturating reactor B;
Internal accessory devices: no interphase reactor K or saturated reactor HK;
