Product description of  Distribution Transformer:

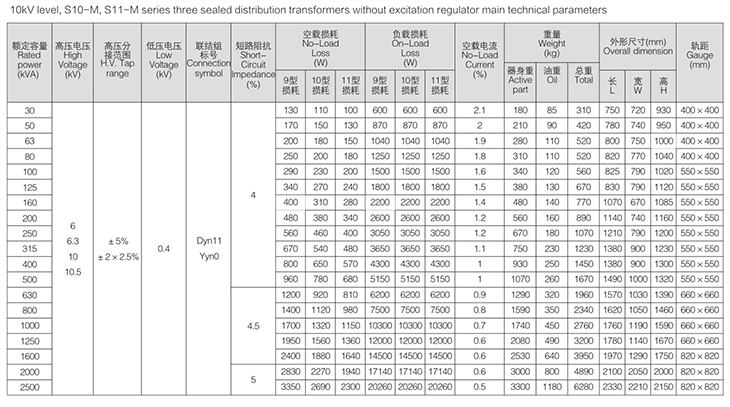

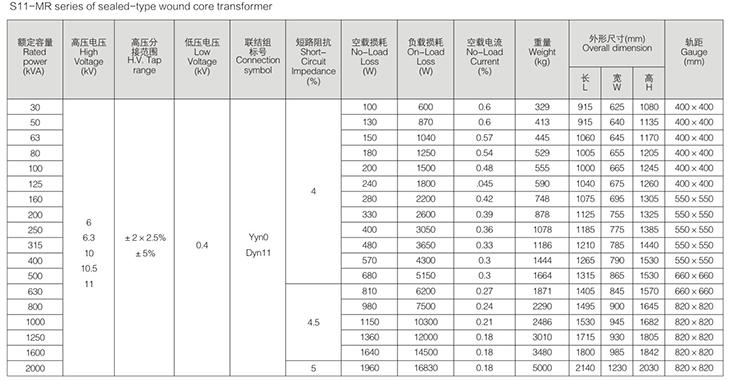

The performance of S10-M, S11-M and S11-MR type 10kV full-sealed oil immersed distribution transformers conforms to GB1094 Power Transformers and GB/T6451-2008 Technical Parameters and Requirements of Three-Phase Oil Immersed Power Transformers. With cores made with quality cooled rolled silicon steel sheets connected with fully sloping joints without being perforated and coils made with quality oxygen free copper, they are beautiful in appearance and safe in operation.Distribution transofmers
are widely used for rural and urban industrial and agricultural power transmission and distribution.

The main function and features:

The oil tanks adopt corrugated or expansion-type radiators with no need for oil conservators, thereby reducing the height of transformers. Since the transformer oil does not come into contact with the air, oil aging is delayed, further enhancing transformer service life. Compared with S9-M, S10-M has a 20% lower no-load loss and S11-M has a 30% lower no-load loss.Distribution transofmers
are highly reliable and advanced and the economic indicators are reasonable. The tanks have diverse forms and well-shaped appearance.
