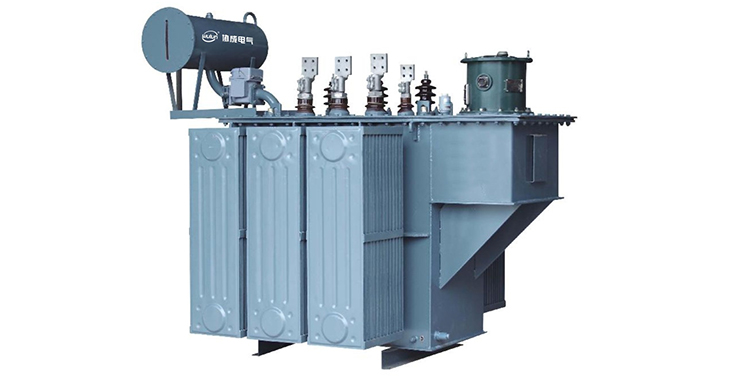

Products descrption of Electric Power Transformer:

The performance of SZ-M and SZ series 10kV and 35kV on-load tap changing transformers conforms to GB1094 Power Transformers and GB/T6451-2008 Technical Parameters and Requirements of Three-Phase Oil Immersed Power Transformers. With cores made with quality cooled rolled silicon steel sheets connected with fully sloping joints without being perforated and coils made with quality oxygen free copper, Electric Power transfromer
are beautiful in appearance and safe in operation. Electric Power transfromer
 are widely used for rural and urban industrial and agricultural power transmission and distribution.

The main function and features:

◎ On-load voltage regulation has high reliability, advanced performance and reasonable economic indicators.
◎ The iron cores adopt stepped three-level joints with the surface coated with hardening varnish, to reduce loss and noise.
◎ With new winding structure, reasonable oil passage design and new insulation structure, the mechanical strength and anti-short circuit capacity are improved.
◎ The tanks have two structures: fully sealed type and the type equipped with oil storage.
